Product Details

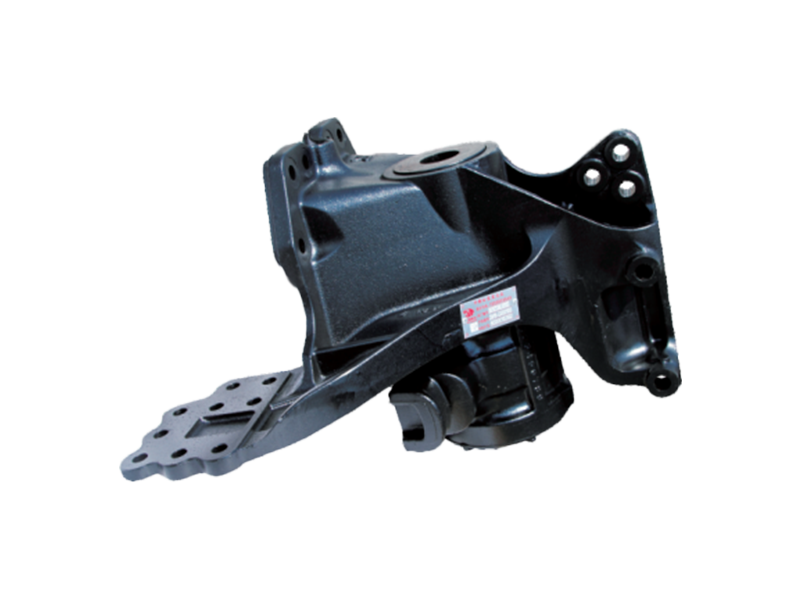

T40 balance shaft assembly
Parameter characteristics
Classification:
Product Details

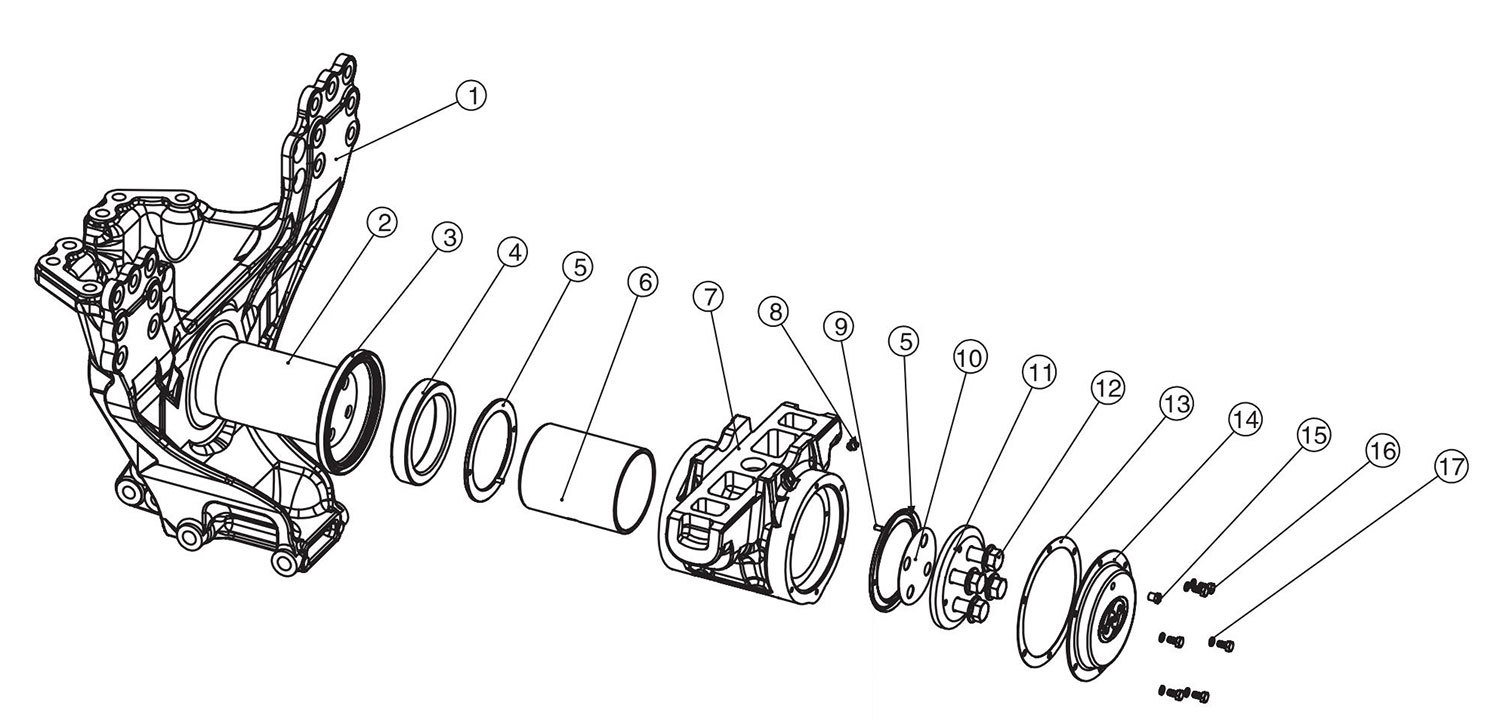

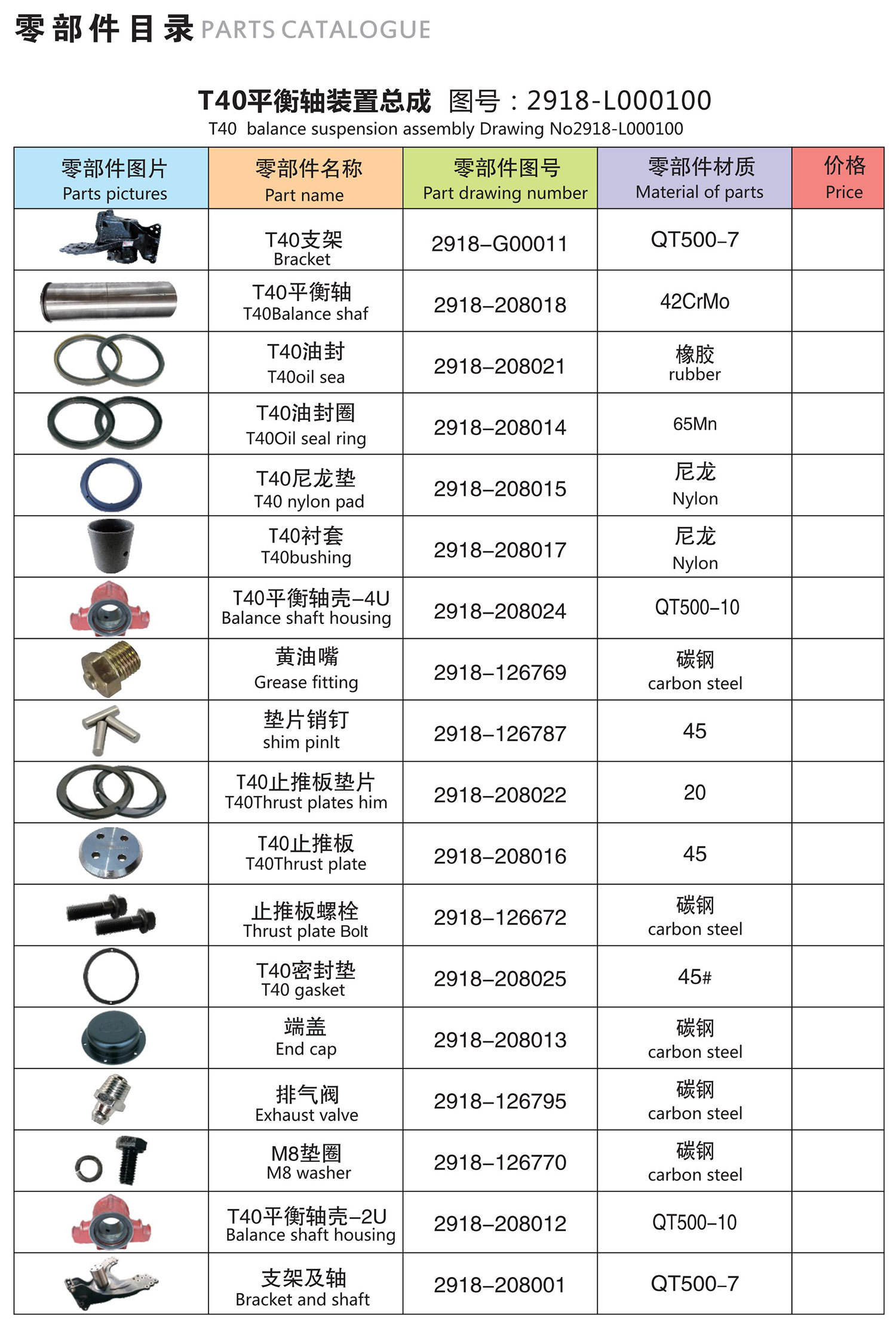

Serial Number |
Name |
Drawing Number |
Quantity |
1 |
T40 Bracket |
2918-G00011 |
1 |
2 |
T40 Balance Shaft |
2918-208018 |
1 |
3 |
T40 Oil Seal |
2918-208021 |
1 |
4 |
T40 Oil Seal Ring |
2918-208014 |
1 |
5 |
T40 Nylon Washer |
2918-208015 |
2 |
6 |
T40 Bushing |
2918-208017 |
1 |
7 |
T40 Balance Shaft Housing-4U |
2918-208024 |
1 |
8 |
Grease Nipple |
2918-126769 |
|
9 |
Washer Pin |
2918-126787 |
4 |
10 |
T40 Thrust Plate Washer |
2918-208022 |
On Demand |
11 |
T40 Thrust Plate |
2918-208016 |
1 |
12 |
Thrust Plate Bolt |
2918-126672 |
1 |
13 |
T40 Sealing Washer |
2918-208025 |
1 |
14 |
End Cover |
2918-208013 |
1 |
15 |
Exhaust Valve |
2918-126795 |
1 |
16 |
End Cover Bolt |
2918-126768 |
6 |
17 |
M8 Washer |
2918-126770 |
6 |
18 |
T40 Balance Shaft Housing-2U |
2918-208012 |
|
19 |
Bracket and Shaft |
2918-208001 |
|
Remarks:
The difference between 2918-G000100 and 2918-G000200 is the different balance shaft housing.
2918-G000100 uses the 2918-208024 balance shaft housing.
2918-G000200 uses the 2918-208012 balance shaft housing.
Bracket (2918-G00011) and shaft (2918-208018) are integrated parts.
The drawing number is 2918-208001.
The thrust plate washer for serial number 10 has inconsistent thickness, the drawing numbers are temporarily set as follows:
0.1mm thick drawing number 2918-208022-1;
0.2mm thick drawing number 2918-208022-2;
0.5mm thick drawing number 2918-208022-3.
